Industrial Weighing and Load Cell Systems

Weight is one of the most direct and reliable measurements in a process plant. Where level can be fooled by foam, density changes or irregular vessel shapes, an industrial weighing system reports exactly how much material is in a vessel, how fast it is being fed, or how much has been dispensed into a container. Built on load cells, weight controllers and the right mounting hardware, process weighing underpins batching accuracy, inventory control and finished-product consistency in food, chemical, pharmaceutical and general manufacturing operations.

This resource is part of our complete guide to predictive maintenance and process automation. Below, we explain how load cells work, how to choose between weighing system components, and how mining, food and beverage and manufacturing plants across Quebec and Canada apply them, with a focus on the Hardy Instruments weighing portfolio CTH represents.

Why Weight Is a Preferred Process Measurement

Measuring inventory or flow by weight has practical advantages over inferential methods. A vessel mounted on load cells reports true mass regardless of how the material settles inside it, and the measurement does not contact the product, so there is no probe to coat, clog or clean. The result is a robust signal that suits a wide range of duties:

• Vessel and silo inventory. Weighing a tank, hopper or silo gives an accurate, real-time inventory of liquids, powders or bulk solids for stock management and reorder triggers.
• Batching and blending. Adding ingredients by weight to a recipe keeps formulations repeatable from batch to batch and supports quality documentation.
• Loss-in-weight feeding. Continuously weighing a feed hopper as material discharges lets a controller meter dry or liquid ingredients at a precise rate.
• Filling and dosing. Net-weight dispensing fills drums, bags and containers to target without relying on volume.
• Check weighing. Verifying finished packages against a target weight catches underfills and overfills before product ships.

How Load Cells Work

A load cell is a transducer that converts force into an electrical signal. Most industrial weighing uses strain-gauge load cells: a precisely machined metal element, the spring element, deflects a tiny, predictable amount under load, and bonded strain gauges convert that deflection into a millivolt signal proportional to the applied weight. A weight controller or transmitter excites the load cells, reads the combined signal, and converts it into a calibrated weight value for display, control and communication to a PLC or process control system.

Selecting load cells is largely about matching the cell style and mounting to the vessel and the duty. Common families include:

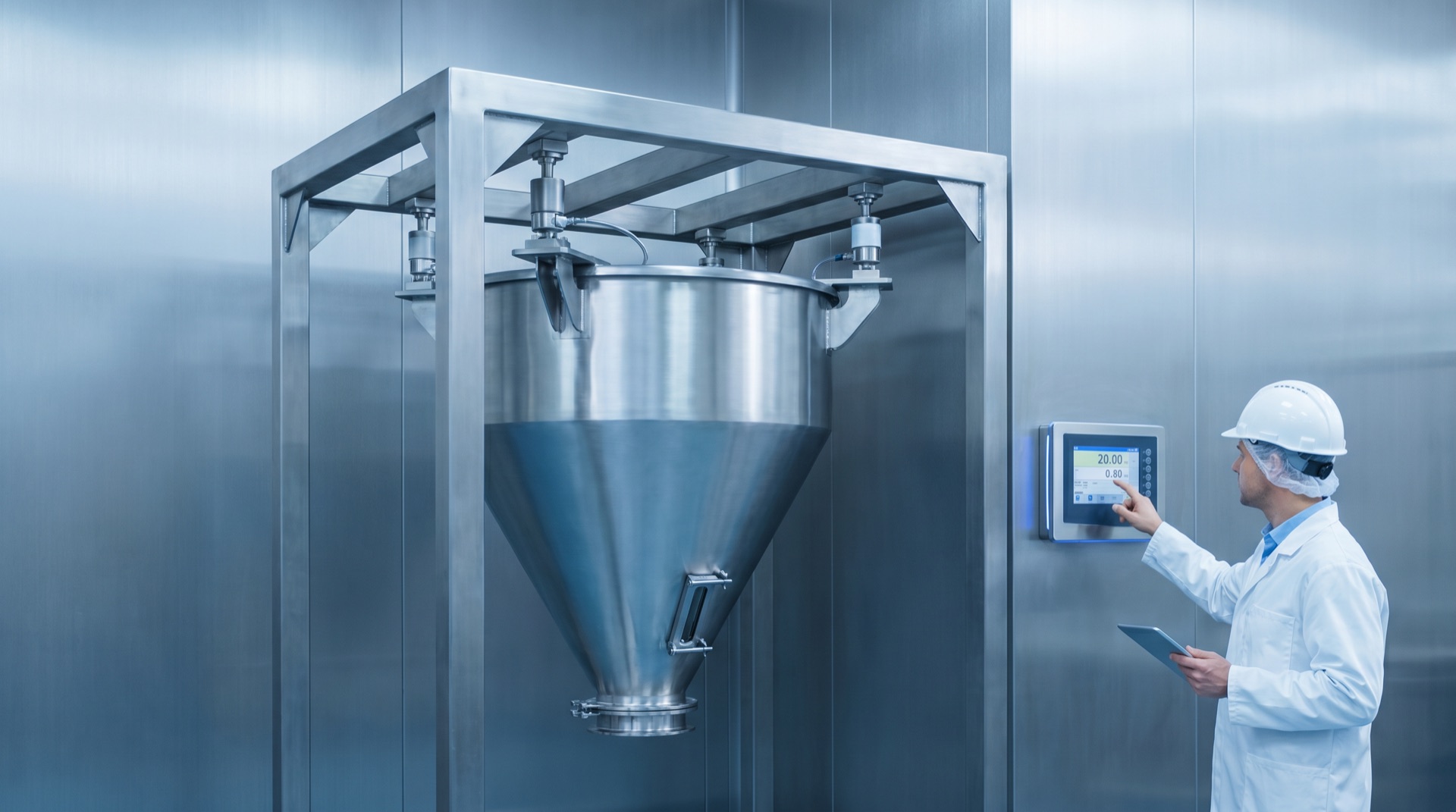

Vessel weighing typically uses several load cells with matched mounting hardware that protects the cells from side loads, thermal expansion and shock while letting the vessel rest freely on the cells. CTH supplies the full Hardy Instruments weighing portfolio, including load cells, mounting assemblies, controllers and indicators, so a weighing assembly can be specified as a matched system rather than assembled from mismatched parts.

Choosing Weight Controllers, Indicators and PLC Modules

The instrument that reads the load cells shapes how weighing integrates into the rest of the plant. There are three broad options:

• Weight indicators. A panel or field weight indicator displays the live weight and provides basic setpoints and outputs, a straightforward choice for stand-alone scales and simple inventory readouts.
• Weight controllers and transmitters. A weight controller adds batching sequences, loss-in-weight control, filling routines and digital communication, acting as a dedicated weighing engine alongside the plant control system.
• PLC weight modules. A PLC weight module plugs directly into a programmable controller rack, bringing load cell reading and weighing functions into the same platform that runs the process, which simplifies wiring and integration for automated lines.

Hardy weighing instruments are known for diagnostic and calibration features that reduce installation and maintenance effort, including electronic calibration that can establish a reference without test weights, vibration-immunity filtering that stabilizes readings on machinery-laden structures, and built-in diagnostics that help technicians isolate a failed cell or cable quickly. These capabilities matter most on the kind of continuously running, hard-to-access equipment that benefits from a broader reliability program.

Industrial Weighing by Industry

Food and Beverage

Recipe accuracy, fill-weight compliance and yield all depend on reliable weighing. Batching by weight keeps formulations consistent, loss-in-weight feeders meter ingredients into continuous lines, and check weighing protects against underfilled packages. The non-contact, washdown-friendly nature of vessel weighing suits hygienic environments. CTH supports food and beverage operations with weighing and the surrounding process instrumentation.

Chemical and Pharmaceutical

Batching and blending of chemicals, additives and pharmaceutical ingredients demand repeatable, documented weight measurement. Weighing high-value or hazardous materials by mass supports both quality records and material accountability, and load-cell-based vessel inventory avoids inserting a probe into aggressive or sterile media.

Manufacturing and Bulk Handling

From silo inventory of resins and aggregates to net-weight filling of finished goods, manufacturing plants use weighing to manage stock, control feeders and verify shipments. Where vessels sit on structures shared with motors, conveyors and other rotating equipment, vibration-immune weighing electronics keep readings stable.

Building Weighing Into Your Process Automation Program

Weighing systems deliver the most value when their data joins the rest of your process and reliability information. Three integration steps make the difference:

1. Record and trend. Routing weight and batch data into plant recorders and controllers creates the historical record that supports yield analysis and audits, as covered in our guide to advanced process controllers and data recording for compliance.
2. Protect the machinery underneath. Mixers, agitators and conveyors that move the weighed material depend on healthy bearings; pairing weighing with vibration analysis for pump protection keeps both the measurement and the equipment reliable.
3. Reach remote vessels. Silos and tanks spread across a large site can report inventory over plant networks; see our guide to wireless communication for mining and petrochemical sites.

For the broader framework, including how to prioritize assets and phase a plant-wide rollout, return to our pillar guide on predictive maintenance and process automation strategies, which ties weighing, vibration, data recording and wireless communication into a single roadmap.
